Material

Technical Characteristics

• Excellent torsion and flexion resistance
• Low resistance to air flow

Reasons to choose Megatube

• Athlete: Megatube profiles offer low aerodynamic resistance, ideal for professional racing frames, when it is necessary to improve the CX of the whole bicycle system; it guarantees excellent torsion and flexion resistance, thanks to drop shaped sections designed to increase the moment of inertia.
• Framebuilders: Megatube gives more vertical rigidity. There are a wide range of tubes available to reduce the frame weight and customize geometry.

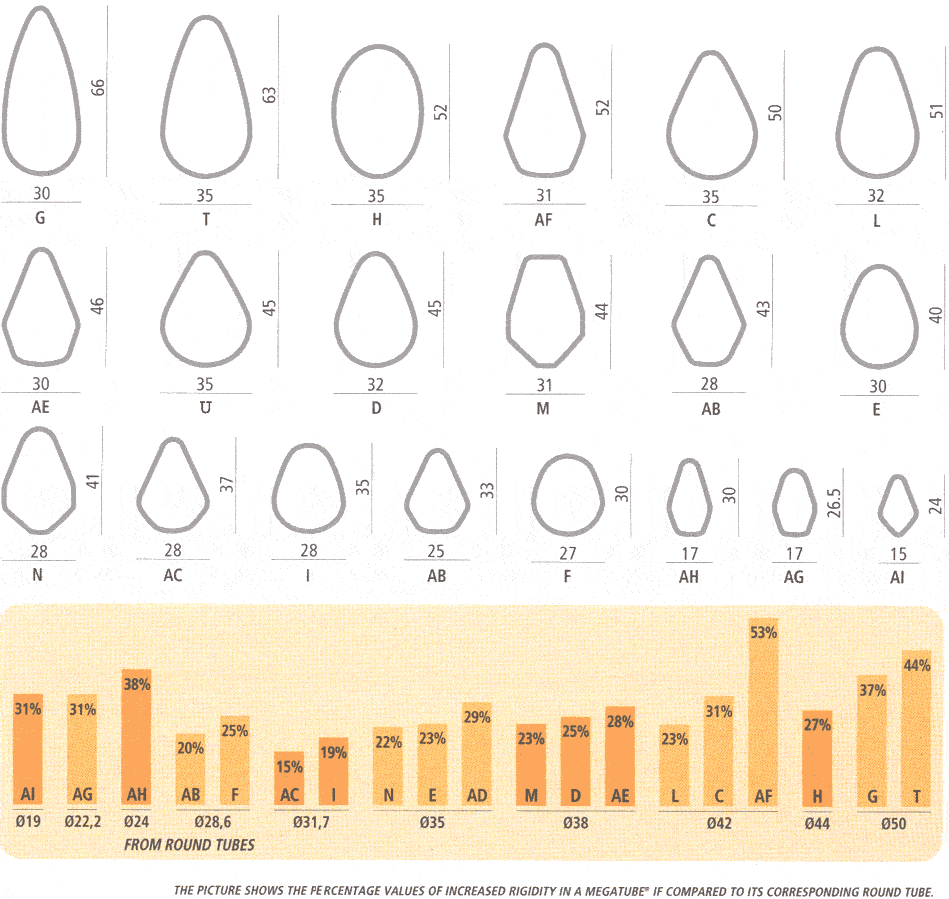

Below is a table of some of the Megatubes that we keep in stock, though any tube can be special ordered to any shape suitable for its original diameter (See From Round Tubes Chart above)

Code		Style	L	L1	W1	T1	W3	T2	W2	L2
SLFA12.../112D	a	D	670	40	0.65	40	0.45	40	0.65	100	259 g	Niobium
SLFL11.../112I	a	I	600	40	0.65	40	0.45	40	0.65	100	207 g	Niobium
FCCA12.../112M	a	M	670	40	0.65	40	0.45	40	0.65	100	259 g	Thermacrom
ZONM11600..112AB	a	AB	600	50	0.7	40	0.5	40	0.7	100	205 g	Nivacrom for Zona
ZONL11600..112AC	a	AC	600	50	0.7	40	0.5	40	0.7	100	241 g	Nivacrom for Zona
ZONL11600..112I	a	I	600	50	0.7	40	0.5	40	0.7	100	241 g	Nivacrom for Zona
ZONL12670..112AD	a	AD	670	60	0.7	40	0.5	40	0.7	120	271 g	Nivacrom for Zona
ZONA12670..112AE	a	AE	670	60	0.7	40	0.5	40	0.7	120	337 g	Nivacrom for Zona
ZONA12670..112D	a	D	670	60	0.7	40	0.5	40	0.7	120	337 g	Nivacrom for Zona
ZONH12670..112AF	a	AF	670	60	0.7	40	0.5	40	0.7	120	373 g	Nivacrom for Zona
ZONH12670..112L	a	L	670	60	0.7	40	0.5	40	0.7	120	373 g	Nivacrom for Zona
ZON114OV425..112AH	a	AH	425	135	0.8				0.6	290	164 g	Nivacrom for Zona
ZON915..112AI	a	AI	560		0.6		0.6		0.6		168 g	25CrMo4
ZALH12670..112C	a	C	670	100	2.2	60	1	60	1.4	100	256 g	Al-Zn-Mg
ZALH11610..112E	a	E	610	80	1.5	50	1	50	1.4	80	171 g	Al-Zn-Mg
AT7B12...002	a	G	670	100	1.4		1.4		1.4		265 g	Al-Zn-Mg
ALTB13...236G	a	G	670	250	1.4	50	1.0	40	1.3	50	330 g	Al-Zn-Mg
