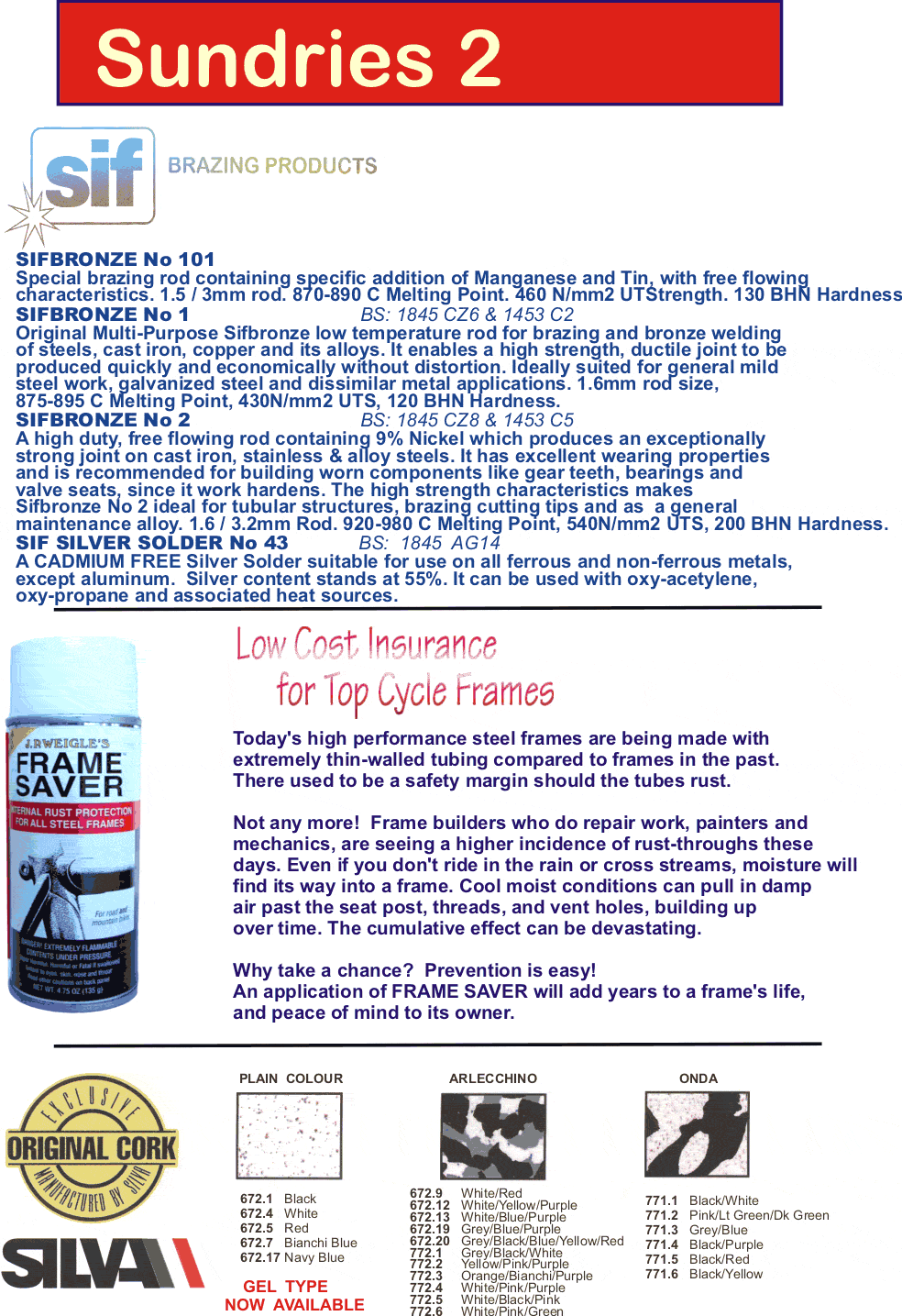

Bronze Rods and Silver Solder Stocked
SIF
Bronze No 101
Special brazing rod containing specific addition of Manganese and Tin
with free flowing characteristics. 870-890 C Melting Point. 460 N/mm2 UTS
Strength. 130 BHN Hardness.
Stocked in 1.5 or 3.0mm rods
SIF Bronze No 1
Original Multi-Purpose Sifbronze low temperature rod for brazing and
bronze welding of steels, cast iron, copper and its alloys. It enables a high
strength, ductile joint to be produced quickly and economically without
distortion. Ideally suited for general mild steel work, galvanized steel and
dissimilar metal applications. 875-895 C Melting Point, 430N/mm2 UTS, 120 BHN
Hardness. Stocked in 1.6 or
2.4mm rods
SIF Bronze No 2
A high duty, free flowing rod containing 9% Nickel which produces an
exceptionally strong joint on cast iron, stainless and alloy steels. It has
excellent wearing properties and is recommended for building worn components
like gear teeth, bearings and valve seats since it work hardens. The high
strength characteristics makes Sifbronze No 2 ideal for tubular structures,
brazing cutting tips and as a general maintenance alloy. 920-980 C Melting
Point, 540 N/mm2 UTS, 200 BHN Hardness.
Stocked in 1.6 or 3.2mm rods
SIF
Silver Solder No 43
A Cadmium free Silver solder, which is free flowing, suitable for us on
all ferrous and non-ferrous metals, except aluminium. Silver content stands at
55%. It can be used with oxy-acetylene, oxy-propane and associated heat sources.
Ideal for close fitting capillary joints and good colour match on Stainless
Steel. Melting Point 630-660 C, 415 N/mm2 UTS
Stocked in 1.5mm x 500mm rods
SIF
Silver Solder No 39
A Cadmium free Silver solder suitable for use on all ferrous and non
ferrous metals, except aluminium. Silver content is 38%. It can used with
a range of heat sources. 650-725 C Melting Point, 460 N/mm2 UTS
Stocked in 1.5mm x 500mm rods
TIG Rods for Steel
309L Stainless Tig Rod
1.0mm.
Suitable for Columbus, Reynolds, Dedacciai and other cromoly based
tube sets
FLUXES for
Bronze brazing and Silver solder
TENACITY Bronze Brazing Flux Powder
Made by Johnson Matthey
500 g Tub
SIF Silver Solder Flux
Powder
500 g Tub
SIF Powder Flux for Tool
Tipping or brazing stainless
For use with Sifbronze No 1 or No 2.
500g Tub
Cycle Design USA Fluxes &
Silver Brazing Products.
Developed in the USA in collaboration between developers Fred Parr and
frame builder Dave Bohm. Used by Award Winning Builders Worldwide
Fillet Pro
Sold by the troy ounce. With "Fillet Pro" you can join stainless
steel to chrome-moly and vice versa. For fillet brazing at below
650C.
Ideal for use with Martensitic SS ( 953)and XCR, SS tips and parts. Beyond any
brass in finish strength at silver temps. Excellent for tips and fork crowns or
loose fits.
Sold by the troy ounce. 1.6mm
gauge.
Also available as 2.4mm gauge on special request.
Brazage System
48 System 48 rod
and flux together has the best capillary action and deepest filler penetration
of all previous Silver Brazing formulas.
System
48 Also will build connection fillets for seat stays, brake bridges, canti
bosses, and is the only filler needed to build complete frame sets using lugs.
System 48 Flow temp is same as
older 56% silver fillers and flux washes off with water.
Sold by the troy
ounce. 1.6mm gauge.
CYCLE DESIGN LFB (Low Fuming Bronze)
Available in 1.6, 2.4 or 3.2mm gauge. 1 lb (454 g) units.
LFB
Bronze Flux Paste
Creamy white, easy to apply, non bubble or flare, soaks off like silver
flux in warm water.
1 lb Jar Also available as
powder on special request.
Stainless Light Flux Paste
Safe general purpose silver brazing flux. Works for improved
bonding and flow of high ratio, low temperature silver brazing rod. Optimal flow
and clean joints regardless of silver grade percentage. Excellent for use with
steel or stainless steel. Water soluble in warm water.
1 lb Jar Also
available as powder on special request.
System 48 Flux Paste
Safe general purpose silver brazing flux. Works with and improves
the flow of every high ratio low temperature silver brazing rod. Provides
optimal cleaning, is great for non stainless tubes and provides a slower more
controllable flow, regardless of the percentage of silver grade.
1 lb Jar Also
available as powder on special request.
For more detail on application see Cycle
Design USA website at
http://www.cycledesignusa.com or for technical questions you can email them
direct on
wade@CycleDesignUSA.com
J R Weigle's ' FRAME SAVER '
|
|
|
Low Cost Insurance
for Top Cycles Frames
Today's high performance steel frames are being made
with extremely thin walled tubing compared to frames in the past. There
used to be a safety margin should the tubes rust.
Not any more! Frame Builders who do repair work,
painters and mechanics, are seeing a higher incidence of rust throughs
these days. Even if you don't ride in the rain or cross streams,
moisture will find its way into a frame. Cool moist conditions can pull
in damp air past the seat post, threads and vent holes, building up
corrosion over time. The cumulative effect can be devastating.
Why take a chance? Prevention is easy!
An application of FRAME SAVER will add years to a frame's life and peace
of mind to its owner.
Developed by US Frame Builder J.R. Weigle to reach all susceptible
internal frame surfaces and adhere for permanent protection. Each tin
should be able protect on average 3 to 5 frames. |
|
